Below you will find wiring diagrams for the Controller 30 and Dual Controller. Note that while the controllers look physically identical, the wiring and programming are different. Additionally, the Dual Controller is wired one of two ways depending on your BMS configuration.

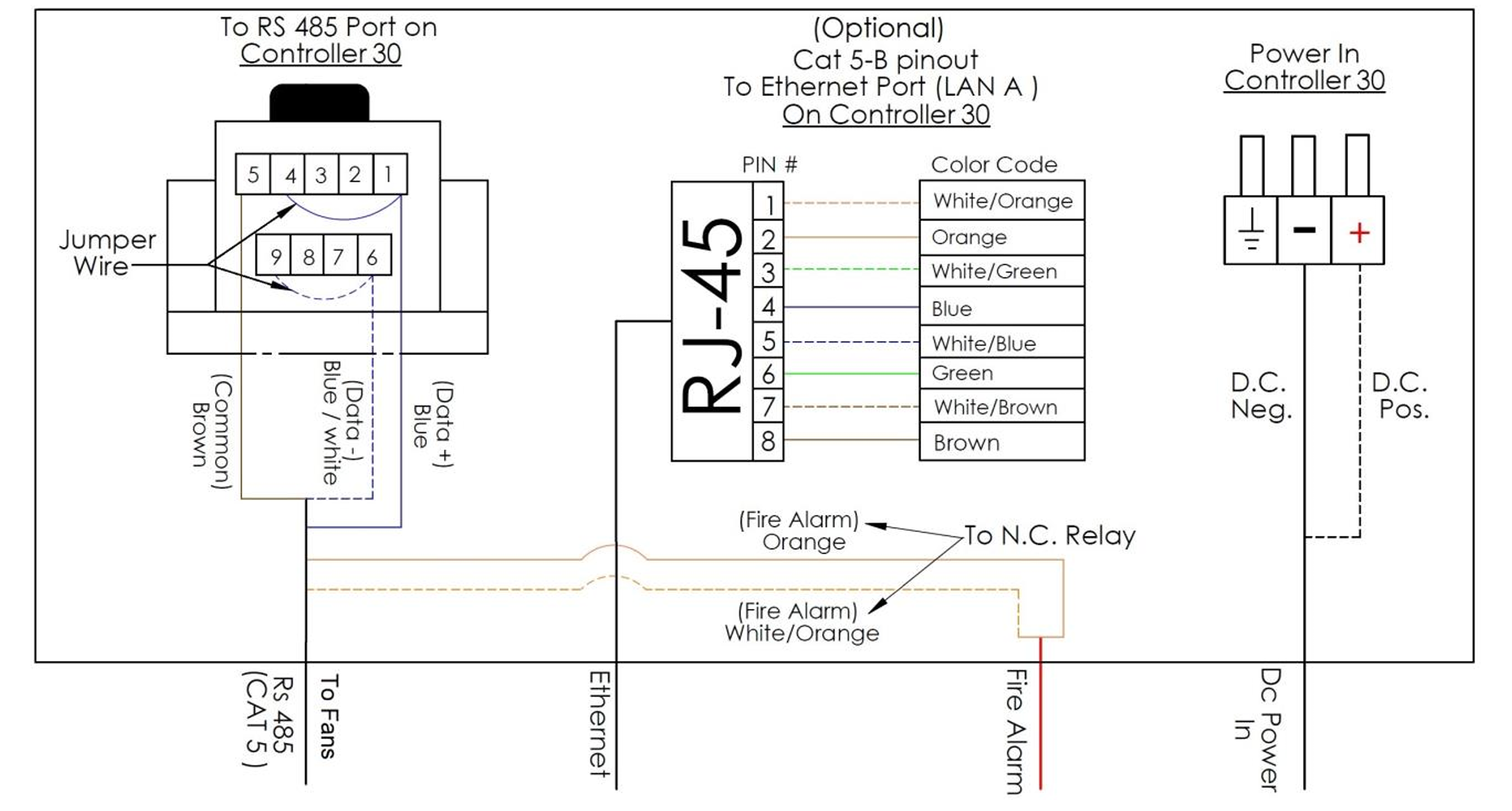

Controller 30

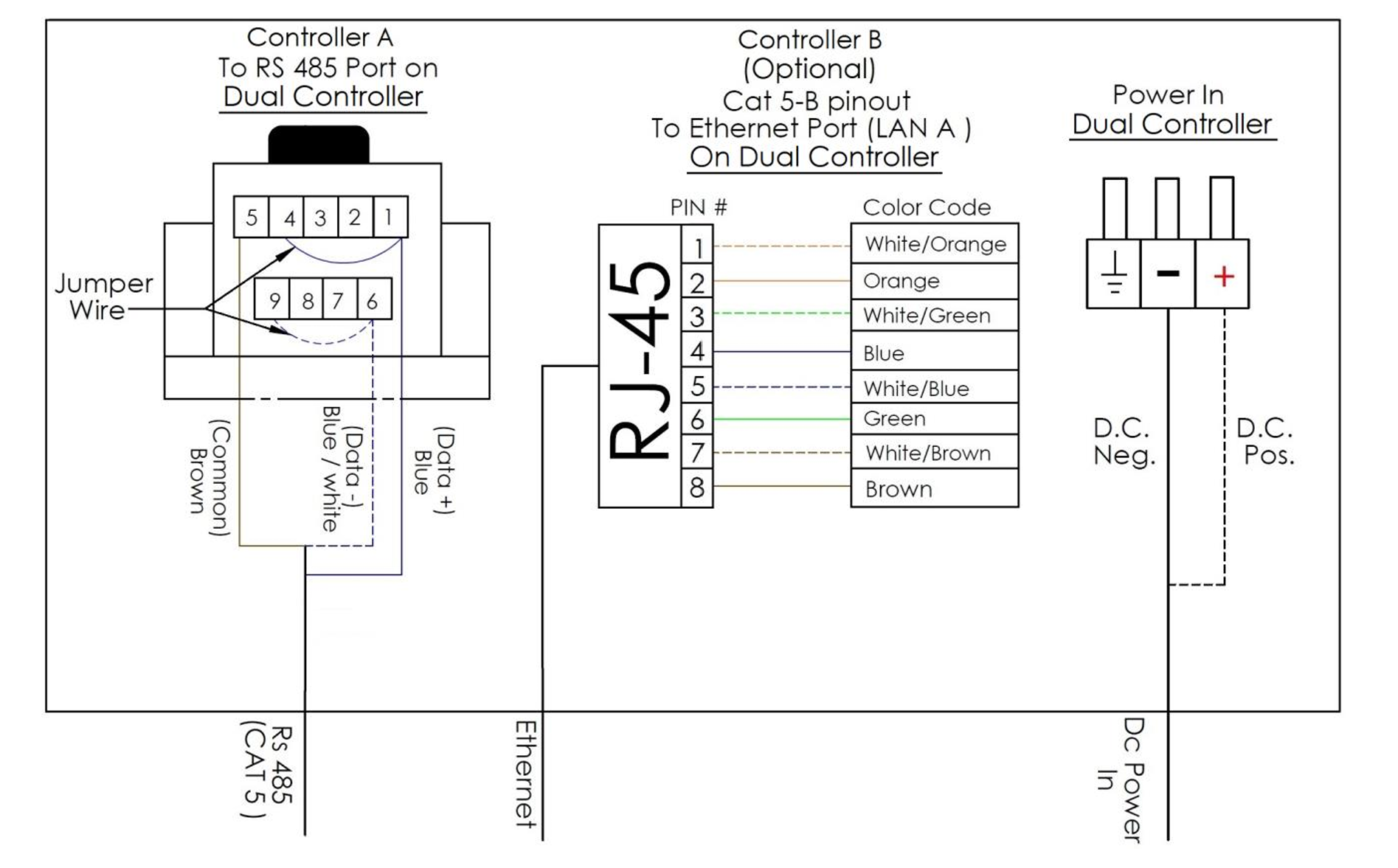

Dual Controller*
*If Bacnet IP is used, use Controller A (Modbus RTU, RS485 Port). If Bacnet MSTP is used, use Controller B (Modbus TCP/IP, Lan A ethernet). Do not use the LAN B ethernet port.
