AirLynk Wiring Diagram

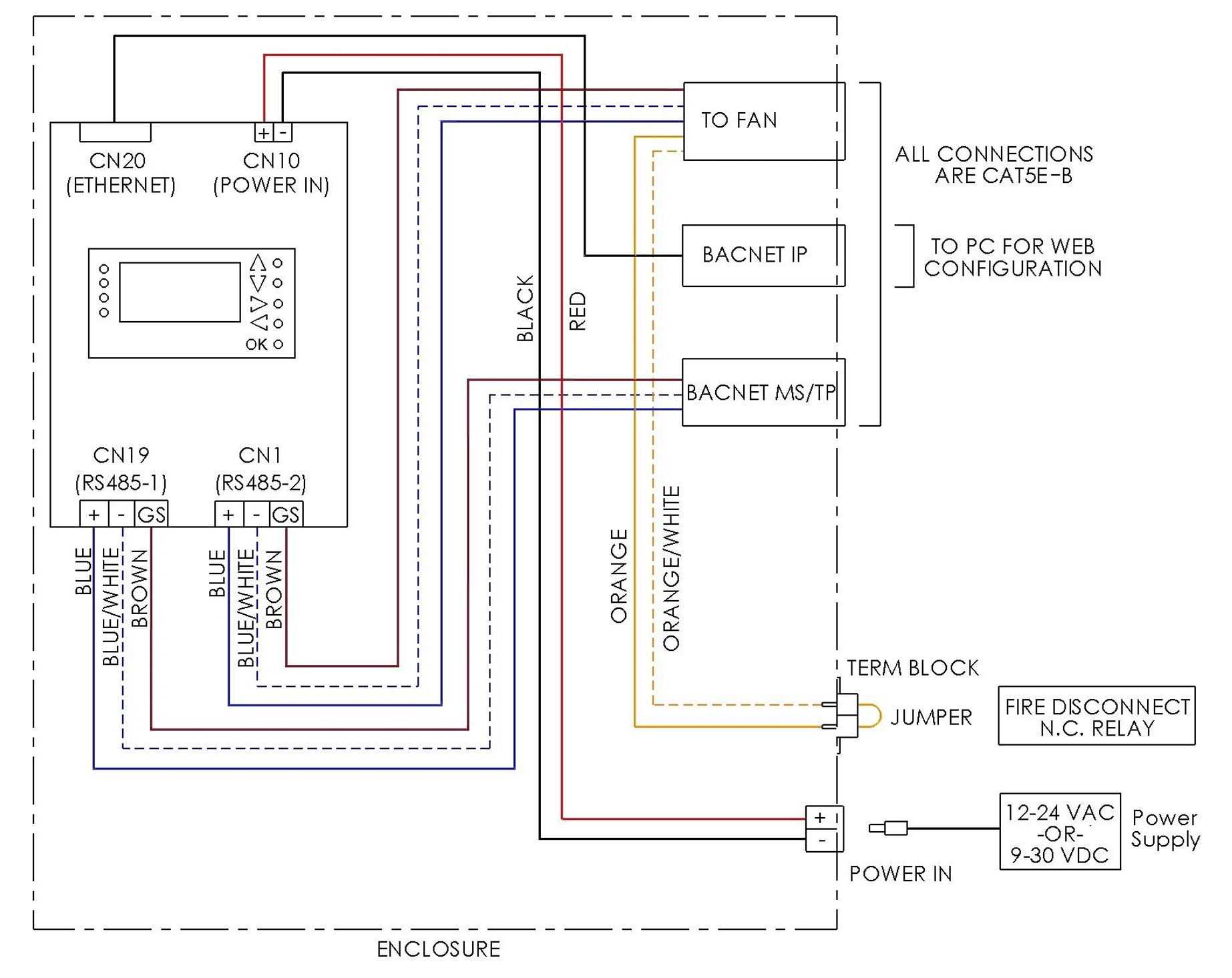

Below you will find the wiring diagram for the AirLynk. The AirLynk is wired from the factory and it is strongly recommended to not modify the wiring inside of the AirLynk enclosure. The power supply is supplied by MacroAir and third party power supplies are not recommended.
